Trapez is a straight-lined and flat structure with trapeze-shaped lamella, which have a width of approx. 15 mm. The combination of specially coloured veneers with the linear structure creates an elegant and modern surface.
2552 – TRAPEZ
Product Description
Composition
Trapez is an embossed panel with special developed veneer / melamine resins with a plywood core.
Format
| Length* | Width | Strength | Coreboard | Repeating pattern |
| 2450 mm | 1050 mm | 18.5 mm | Plywood | No |
| 1050 mm | 2450 mm | 18.5 mm | Plywood | No |
| 3135 mm | 1270 mm | 18.5 mm | Plywood | No |
| 1270 mm | 3135 mm | 18.5 mm | Plywood | No |
*First given measurement specifies the direction of embossment
Surfaces
![[:de]TRAPEZ_Fineline Maro Ebenholz[:en]TRAPEZ_Alpi Maro Ebenholz[:]](https://www.vd-holzinform.de/wp-content/uploads/2018/10/TRAPEZ_Alpi-Maro-Ebenholz-2.jpg)
Specifications
| Surface: | raw, unlacquered |
| Density: | ca. 845 kg/m3 |
| Weight: | ca. 18.5 kg/m2 |
| Embossment: | one-side |
| Deepness of structure: | max. 2.3 mm |
Advantages
- Very exact and robust profile
- Wide range of veneers
- High form stability
Full Frame
Fields of application

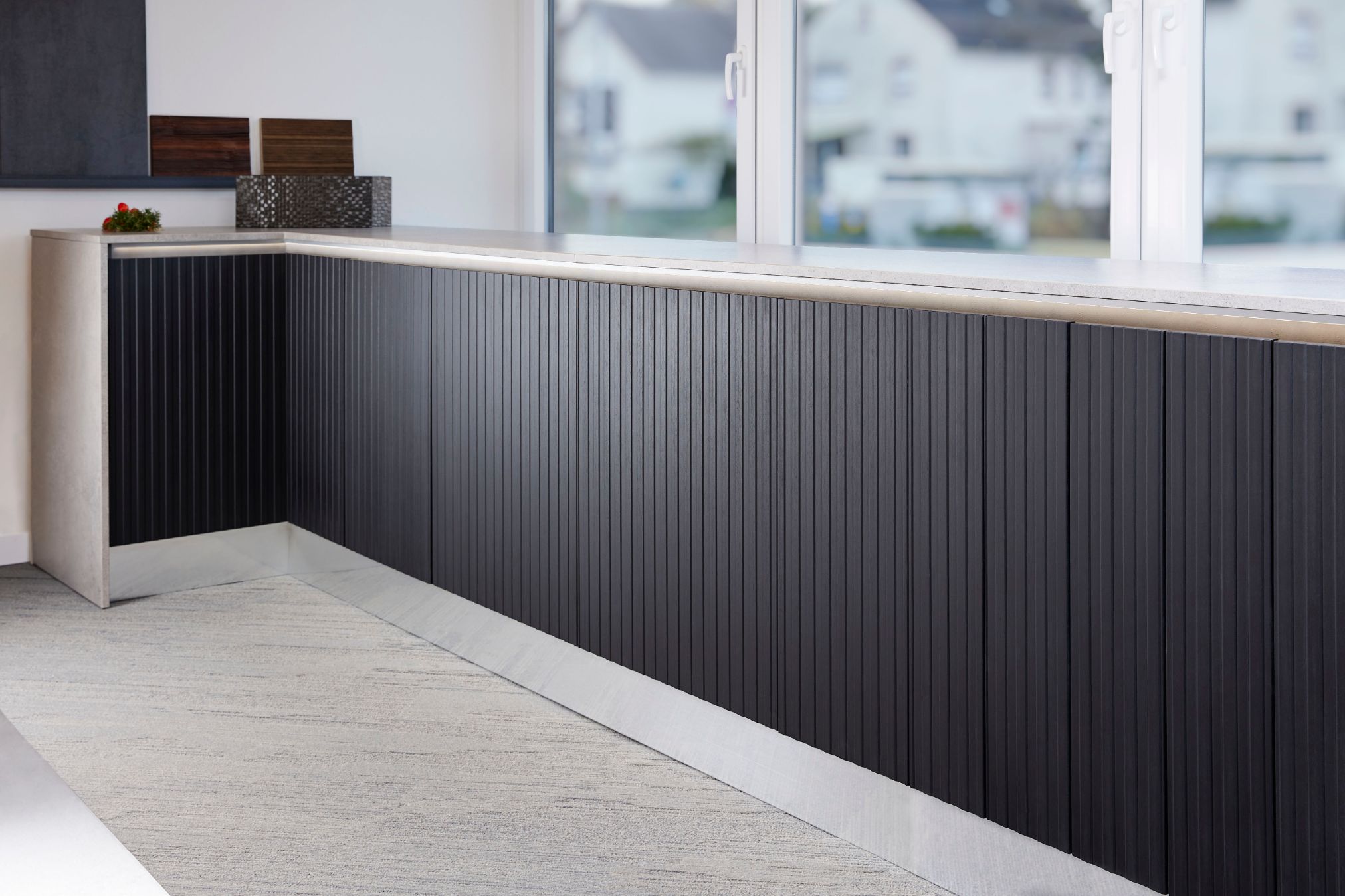

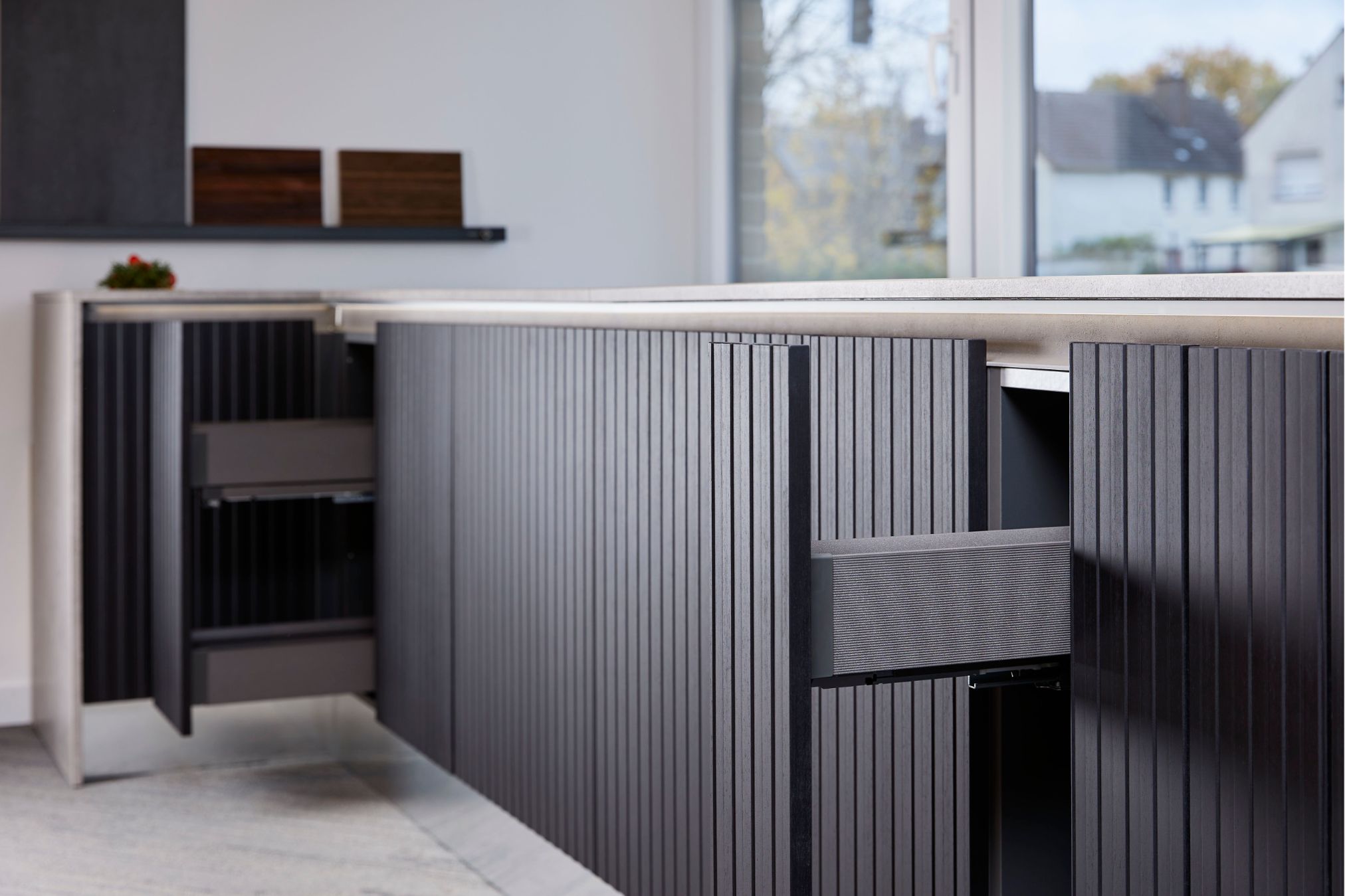

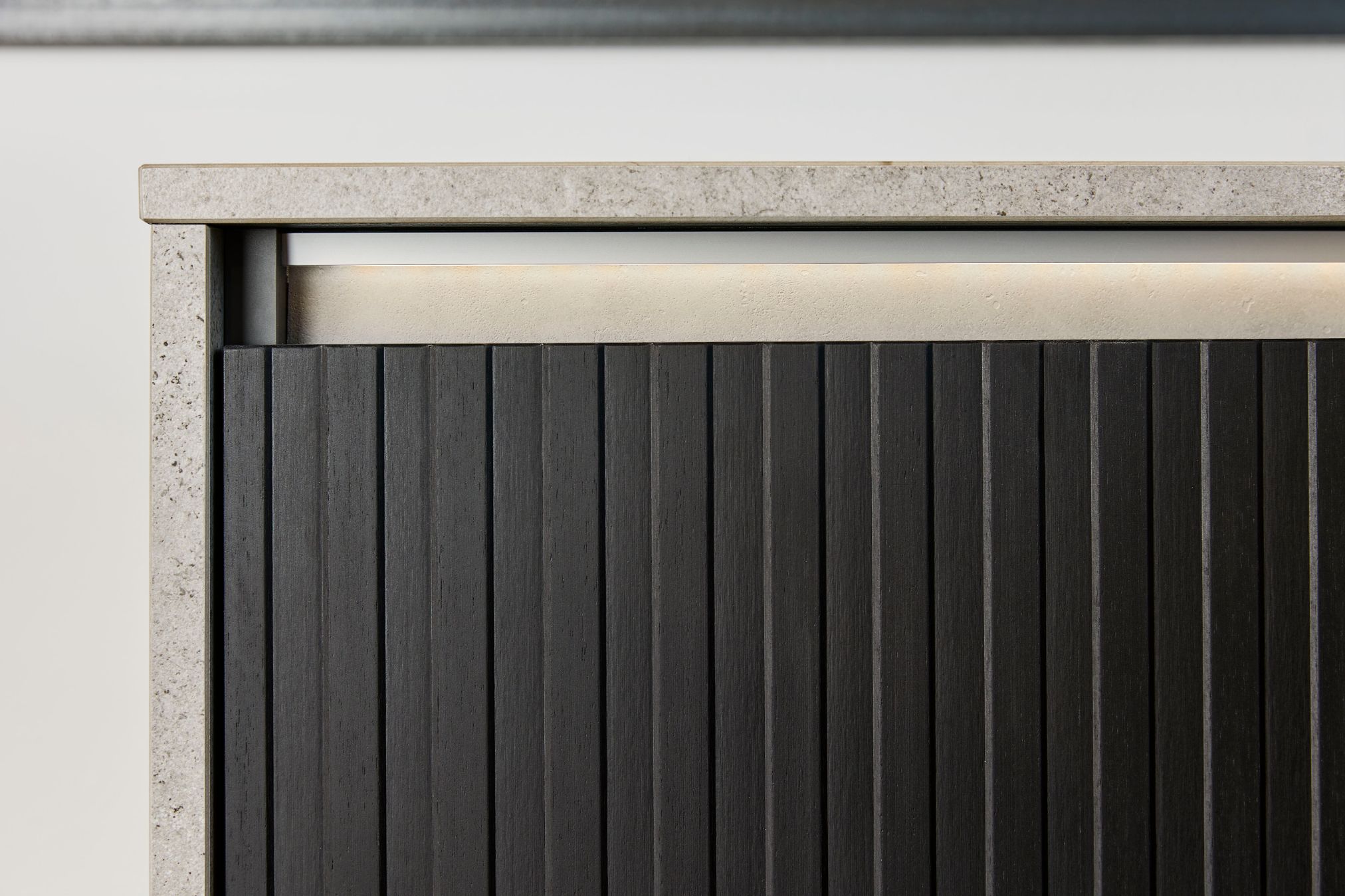

- Interior fittings
- Furniture manufacture
- Shop and fair construction
- Doors
Downloads
+ - Sample Request

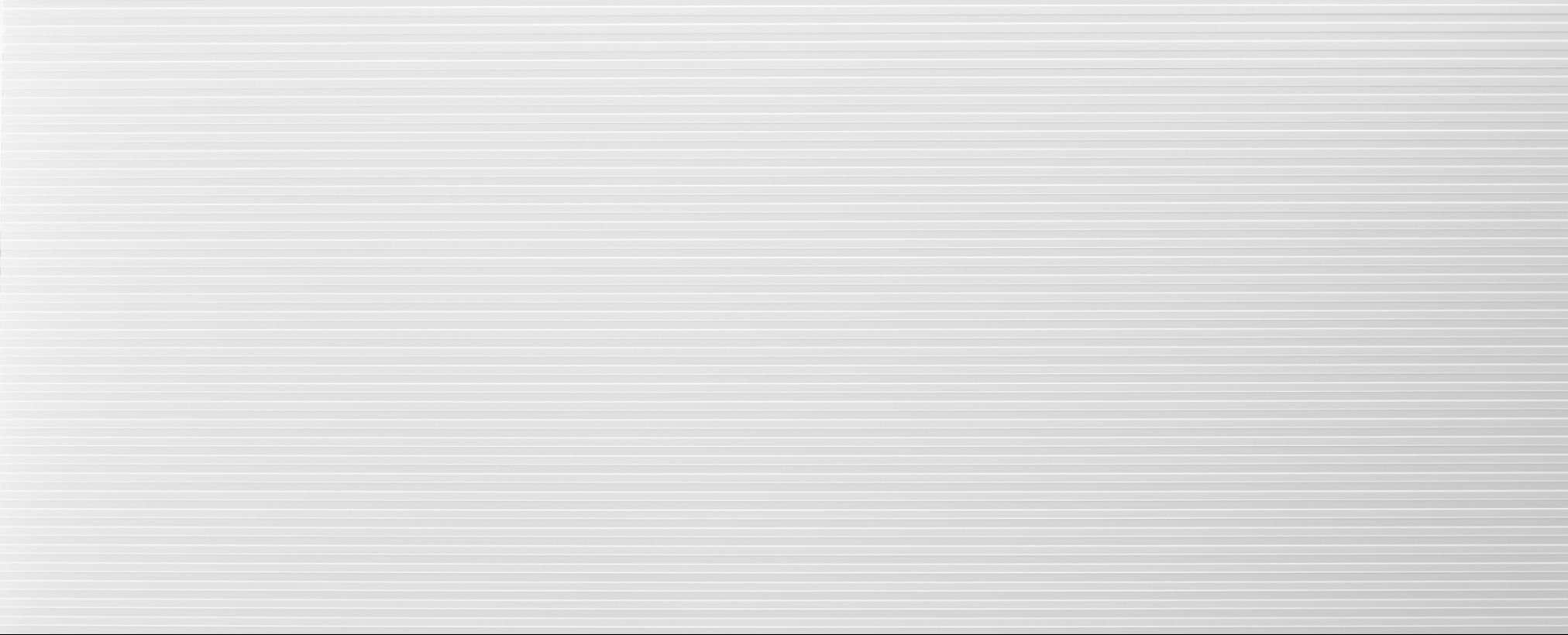

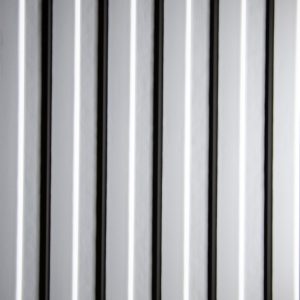

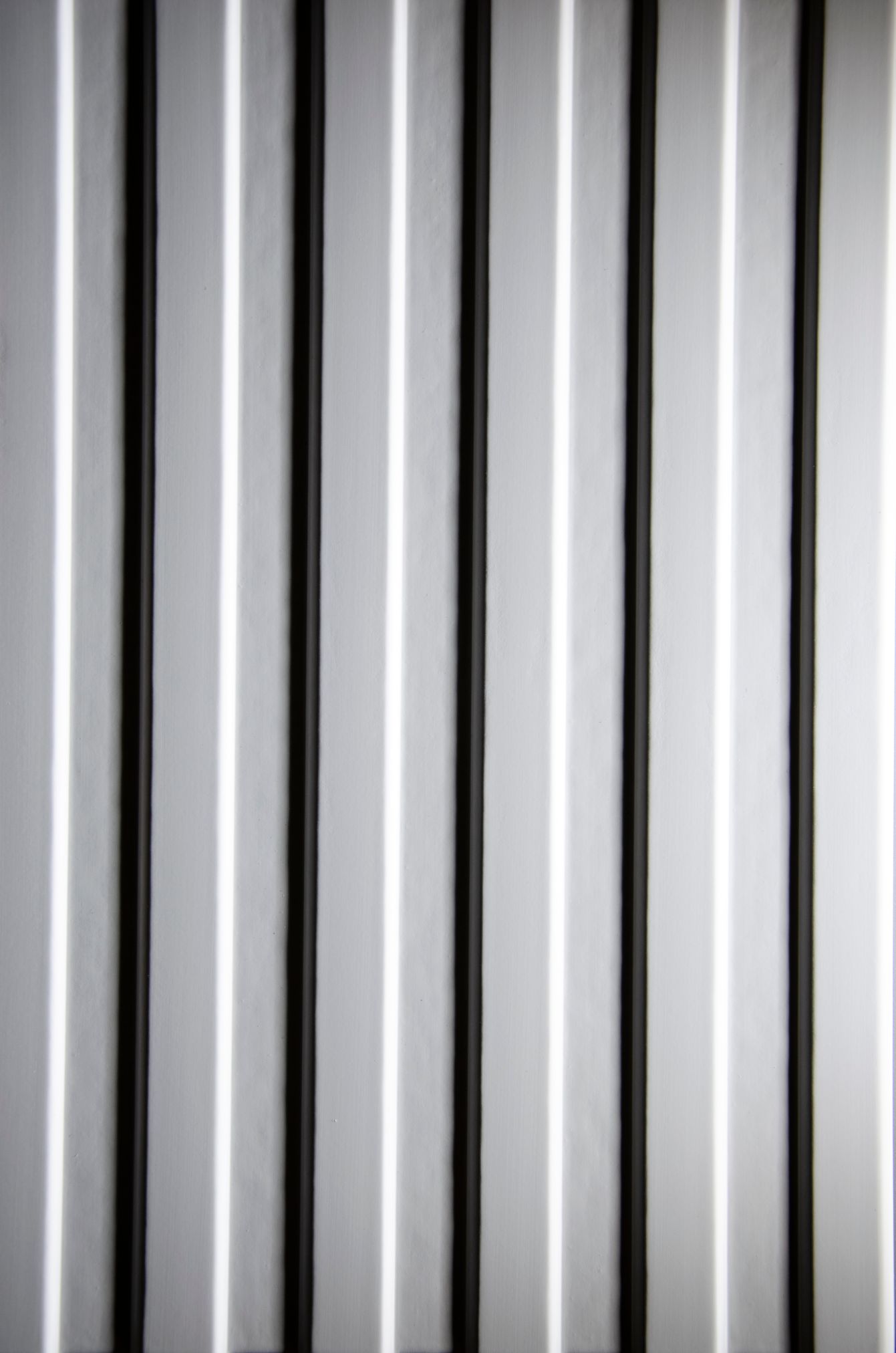

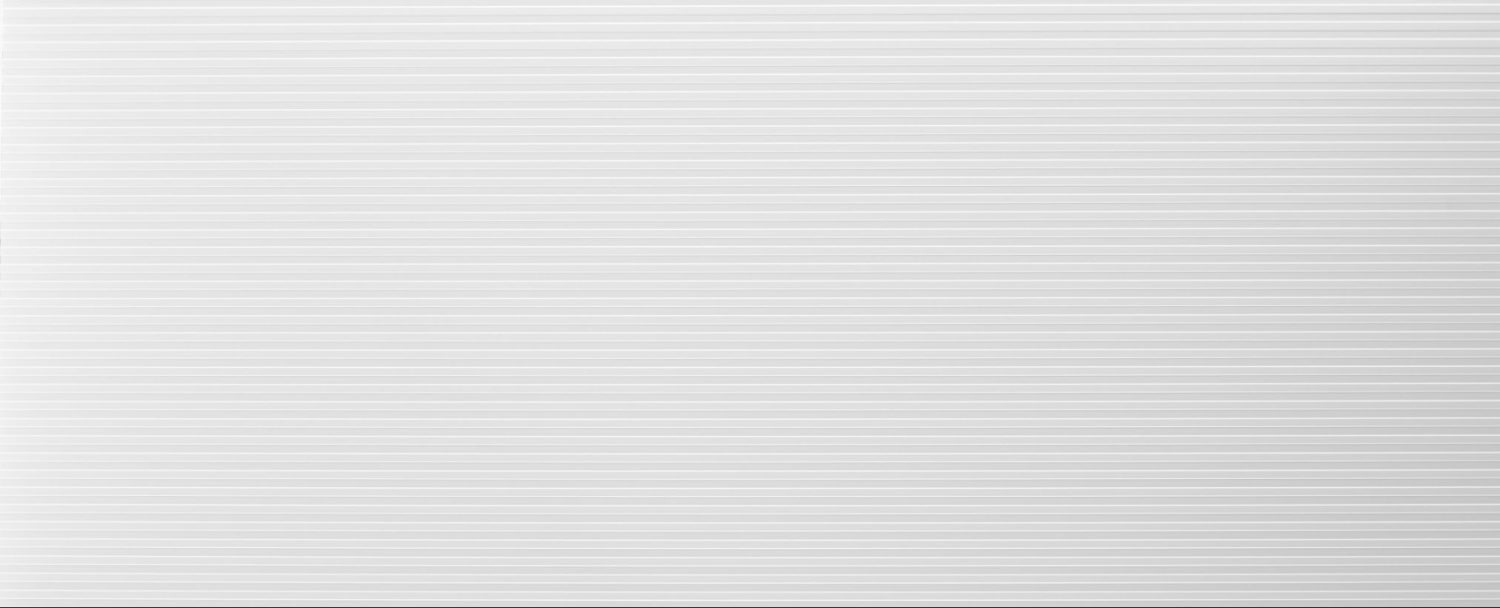

| | Lacquerable foil | |||

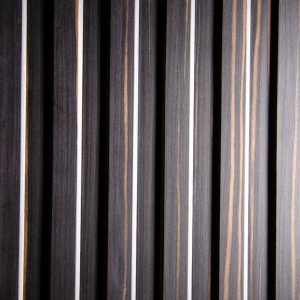

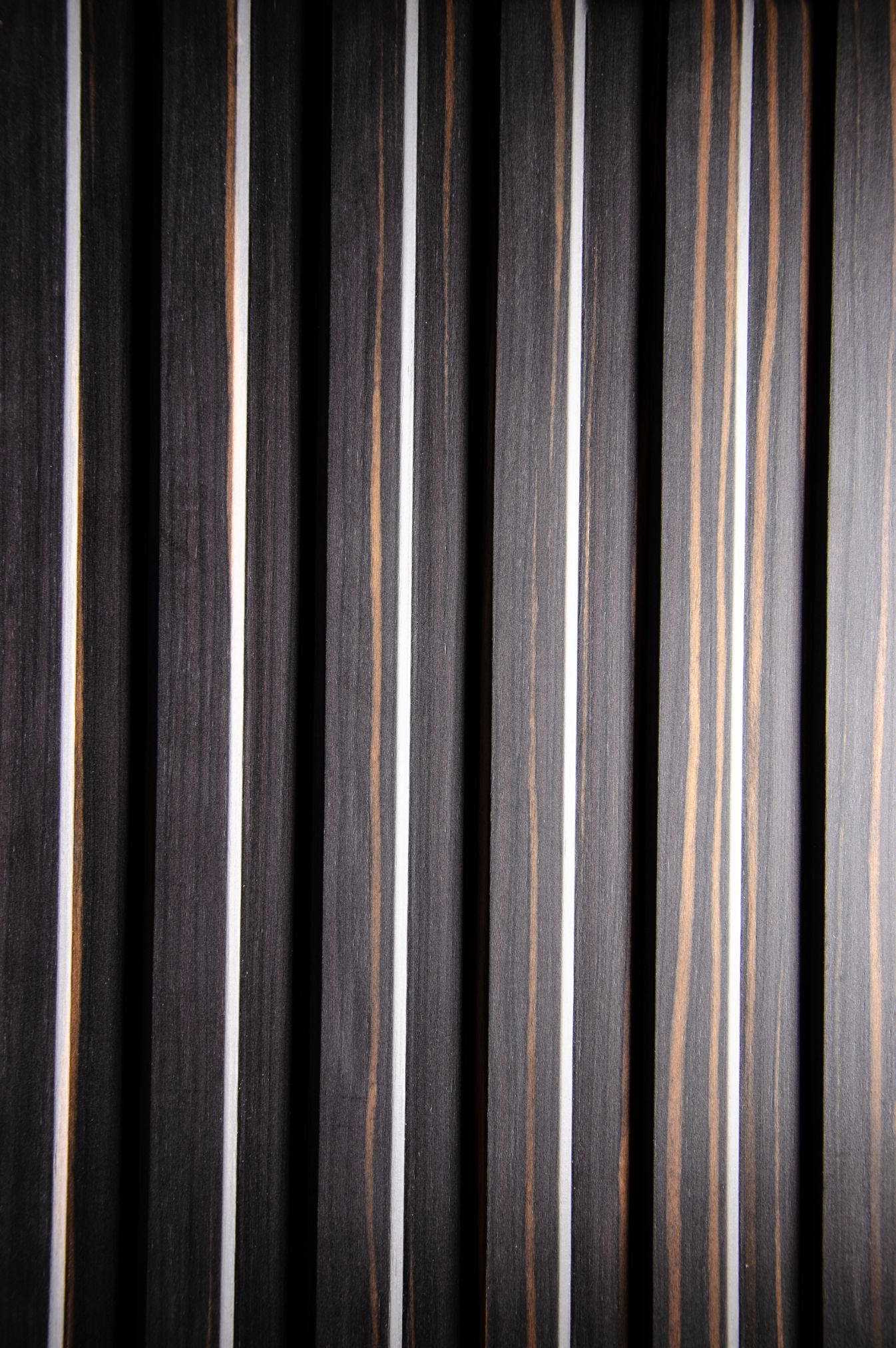

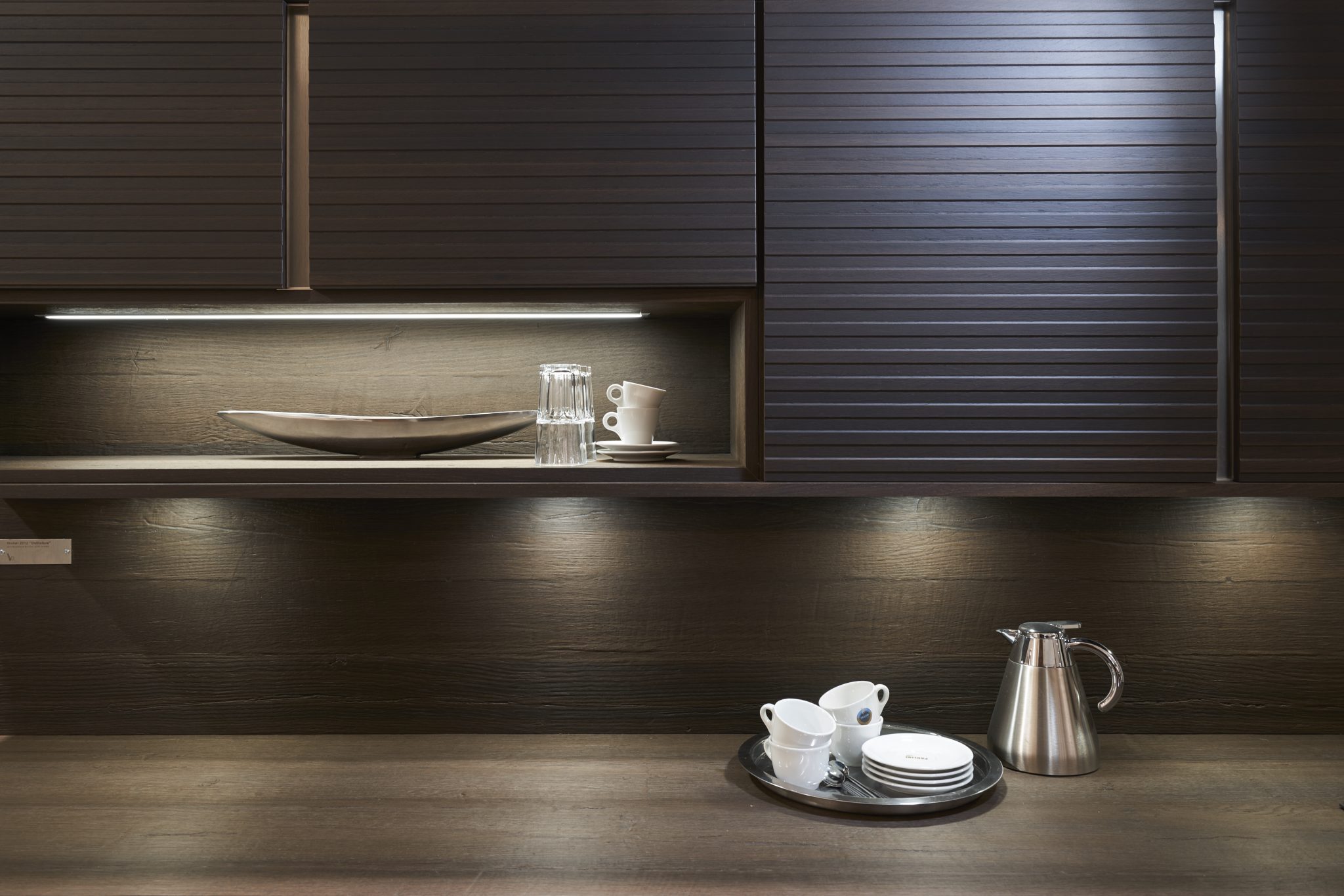

| | Ebony Maro - Fineline veneer | |||

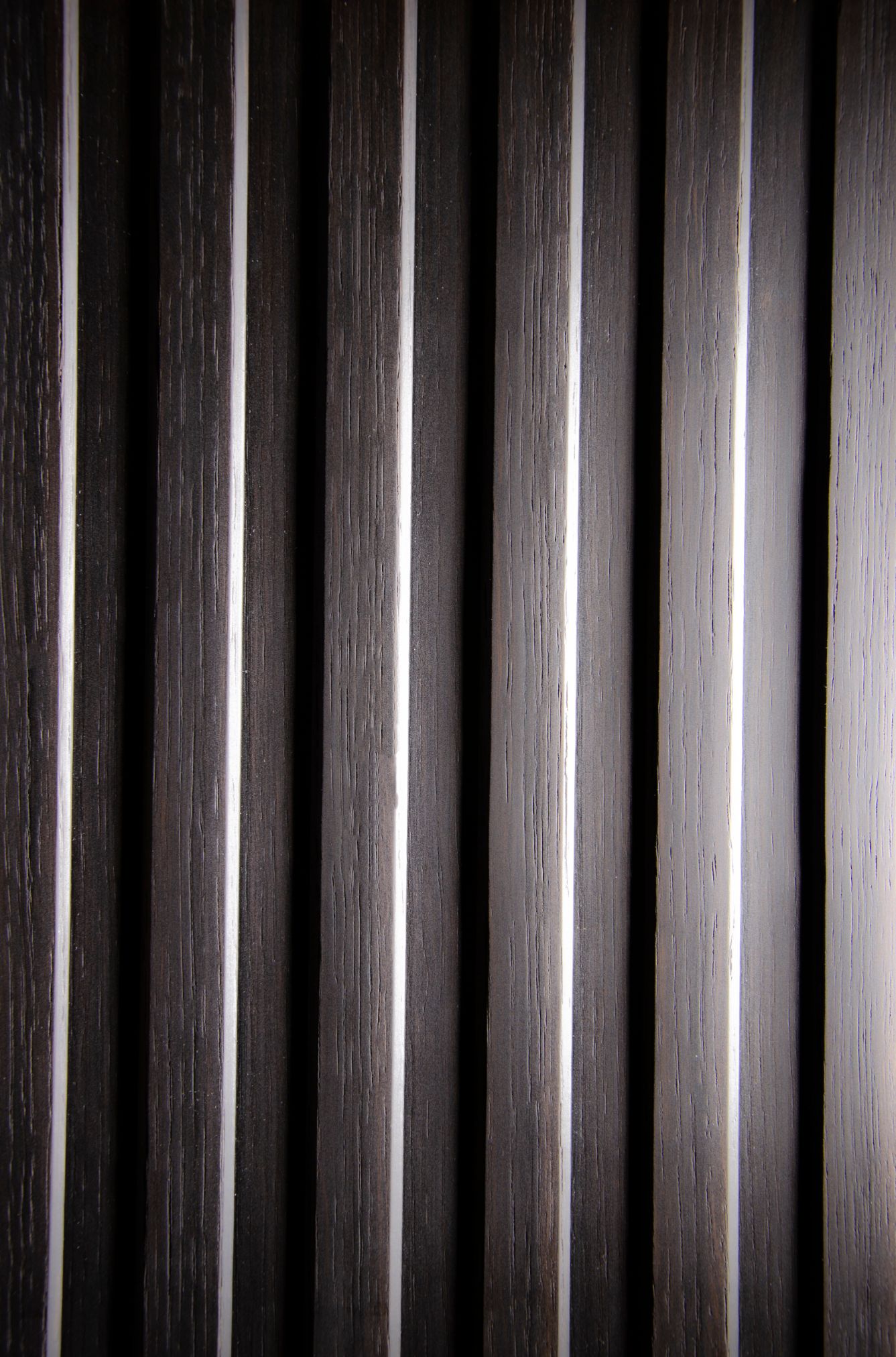

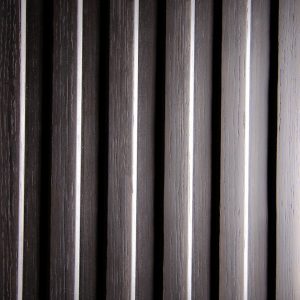

| | Bog Oak - Real wood veneer | |||

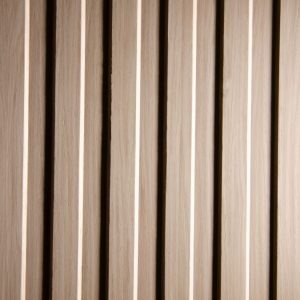

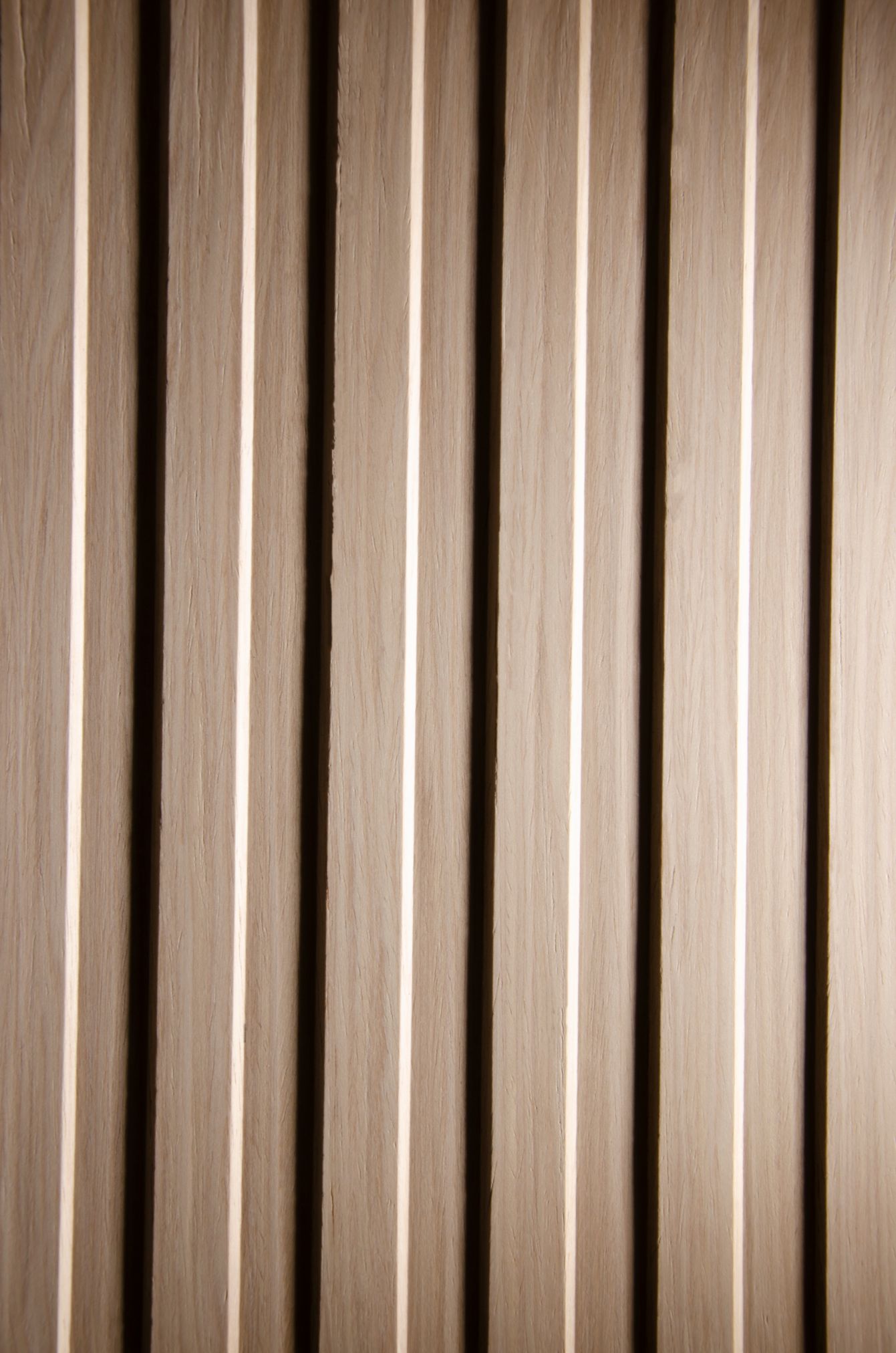

| | Light Oak - Fineline veneer |
