Name: 2201 - WAVE
SKU: 2201 - WAVE
Availability: InStock

Product Description

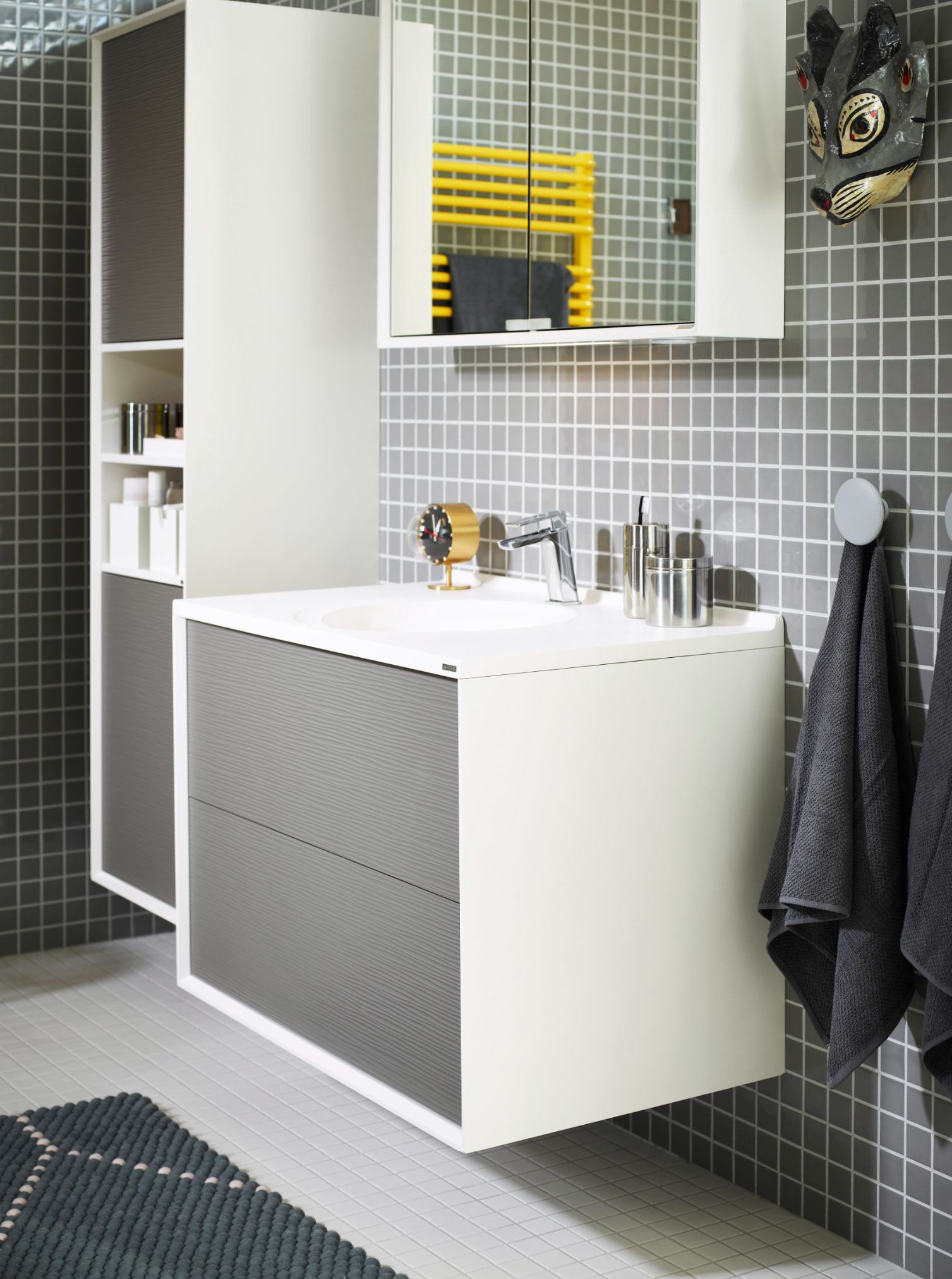

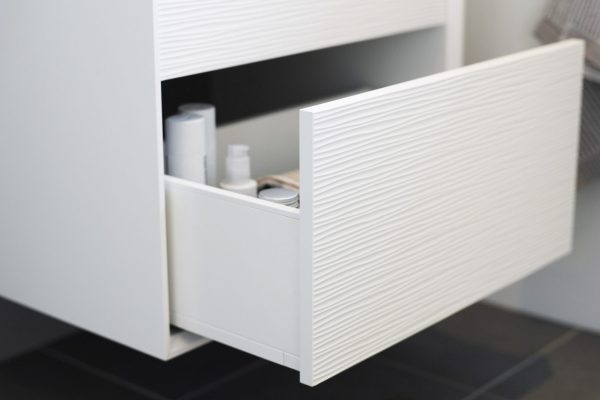

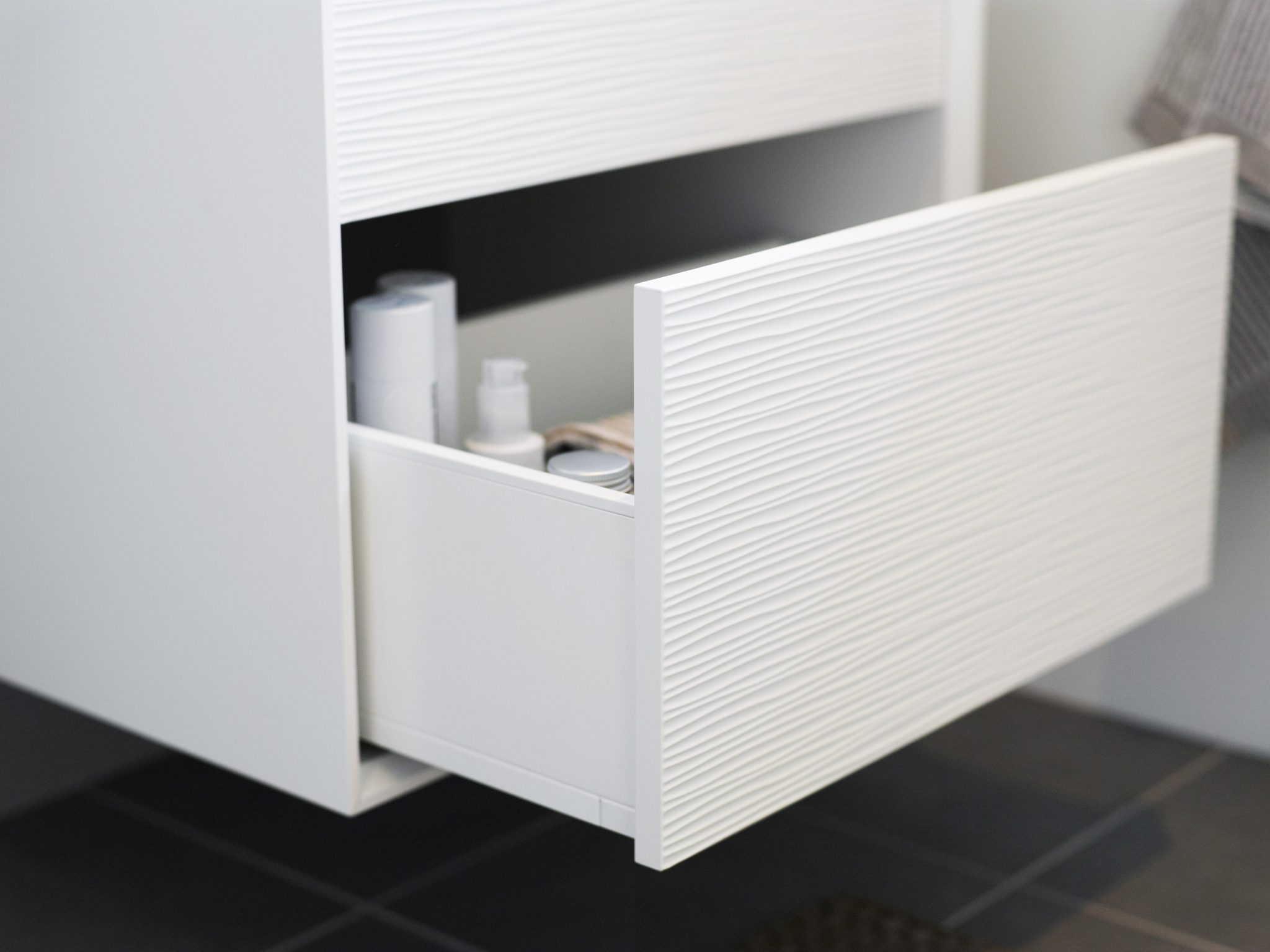

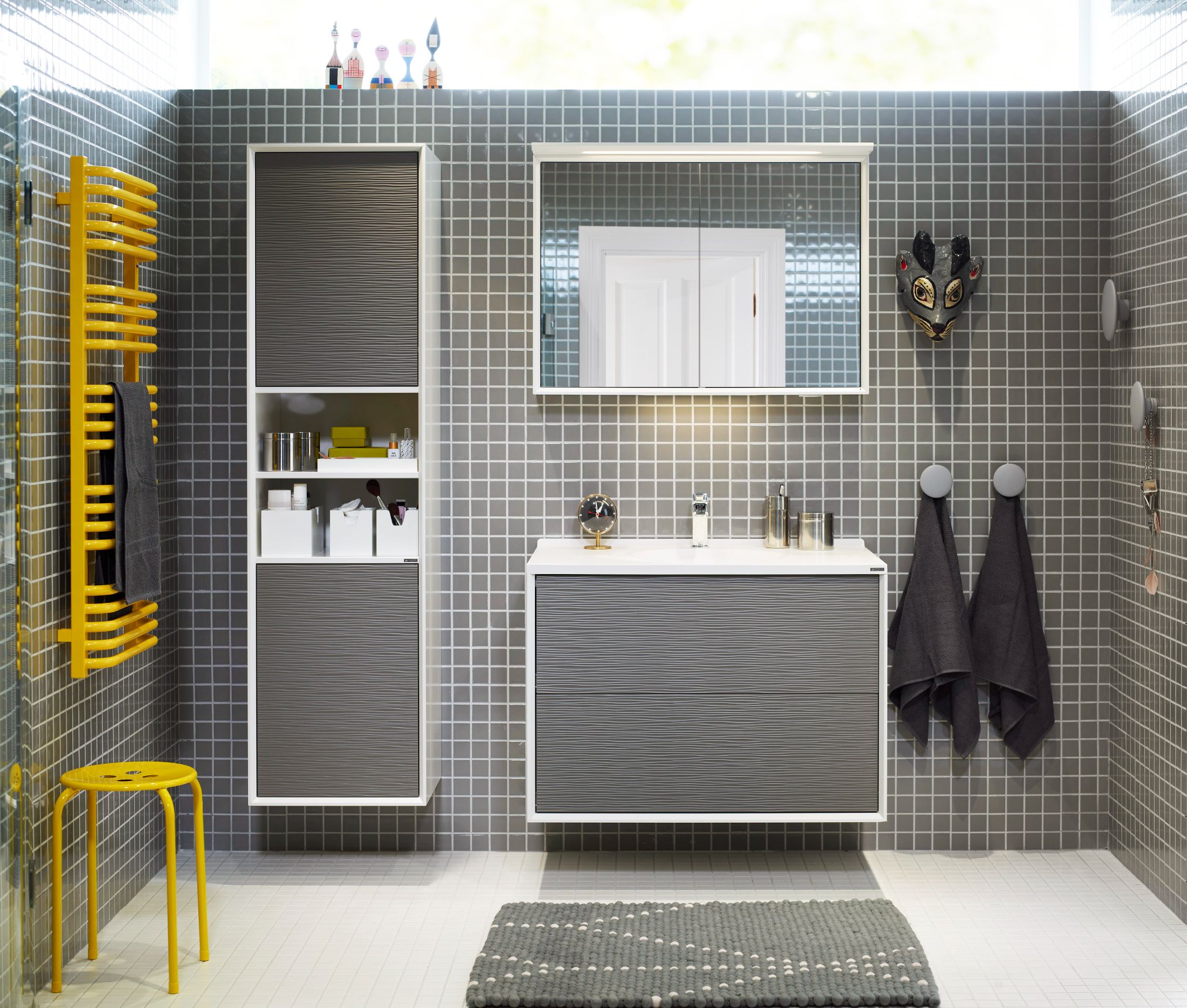

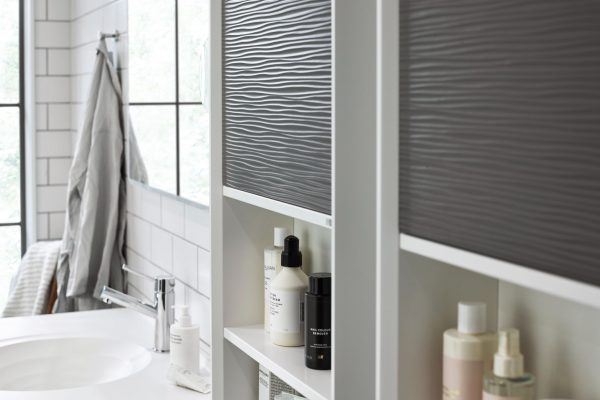

Wave recalls the natural wave movement of water. The slightly swinged structure in combination with specially coloured veneers creates an elegant and modern appearance.

Composition

Wave is an embossed panel with special developed veneer / melamine resins with a MDF core.

Format

Length*	Width	Thickness	Coreboard	Repeating pattern
2450 mm	1050 mm	4,5 mm / 18.5 mm	MDF	No
1050 mm	2450 mm	4,5 mm /18.5 mm	MDF	No
3135 mm	1270 mm	4,5 mm /18.5 mm	MDF	Yes, every 625 mm
1270 mm	3135 mm	4,5 mm /18.5 mm	MDF	Yes, every 625 mm

*First given measurement specifies the direction of embossment

Surfaces

Specifications

Surface:	raw, unlacquered
Density:	ca. 920 kg/m3
Weight:	ca. 17 kg/m2
Embossment:	one-side
Deepness of structure:	max. 0.8 mm

Advantages

Very exact and robust profile
Wide range of veneers
High form stability

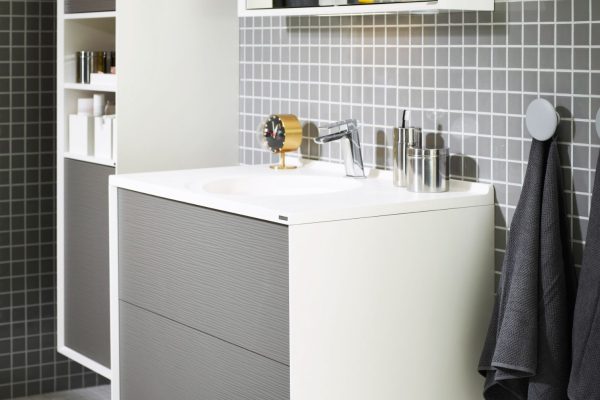

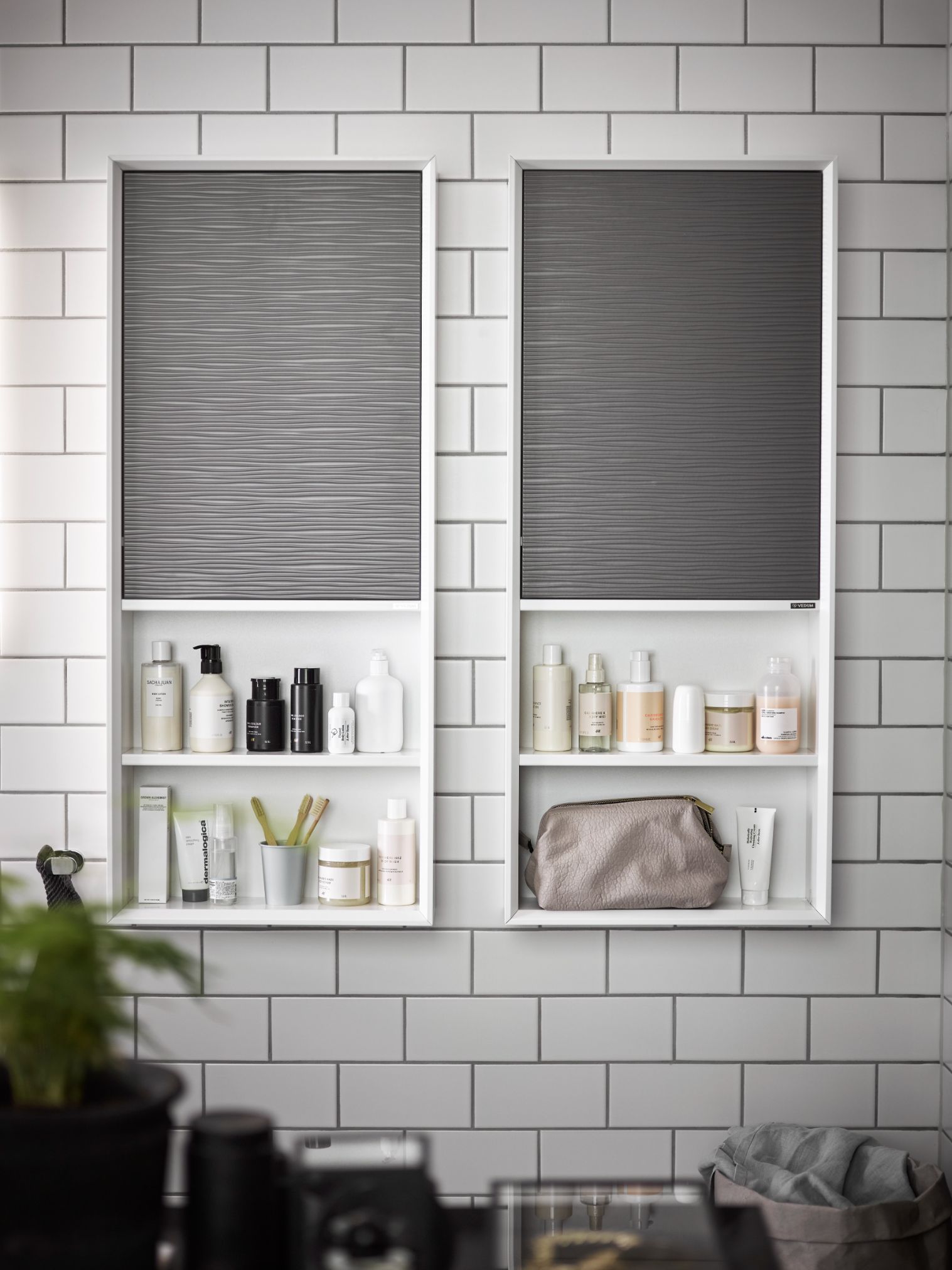

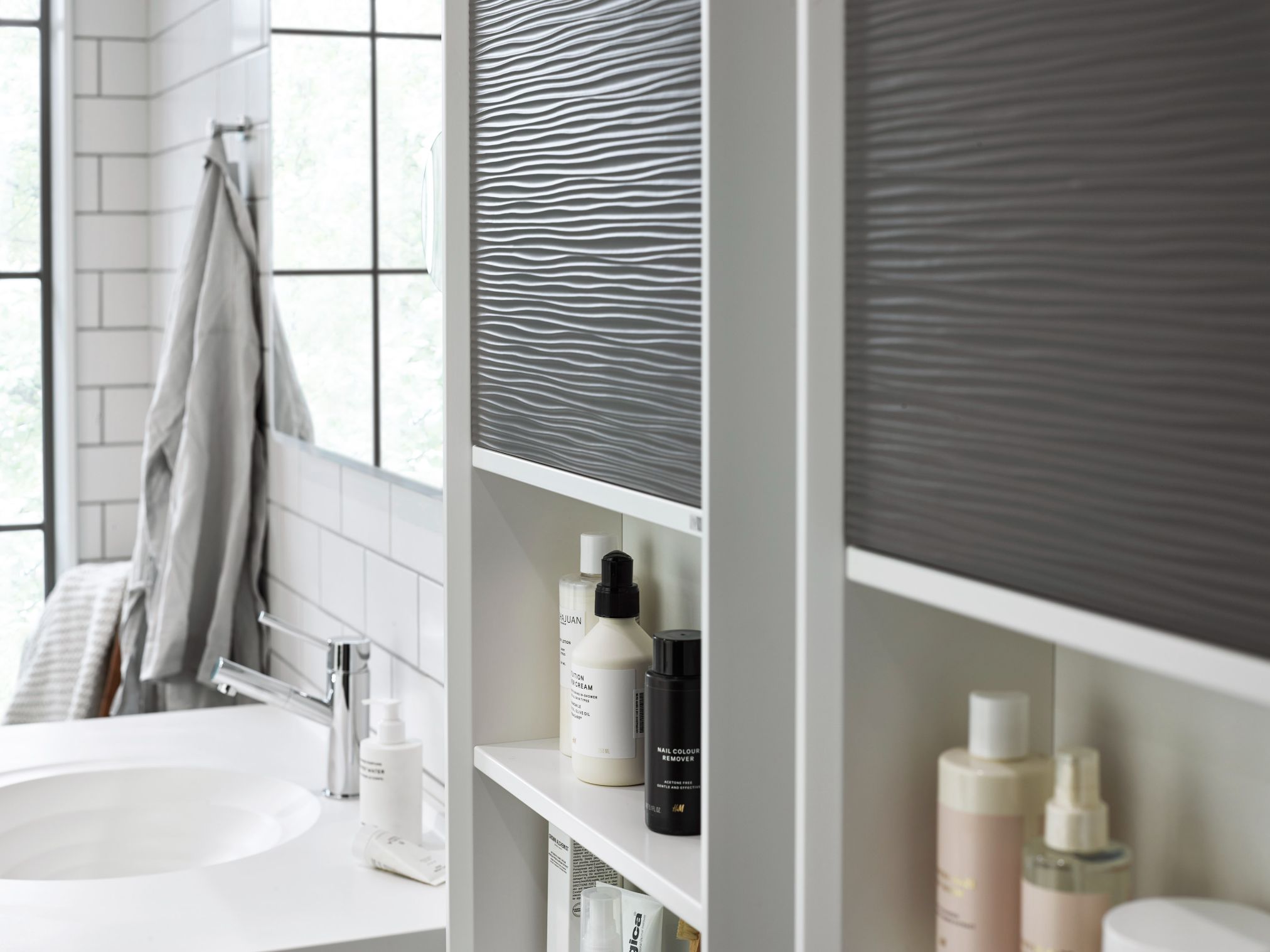

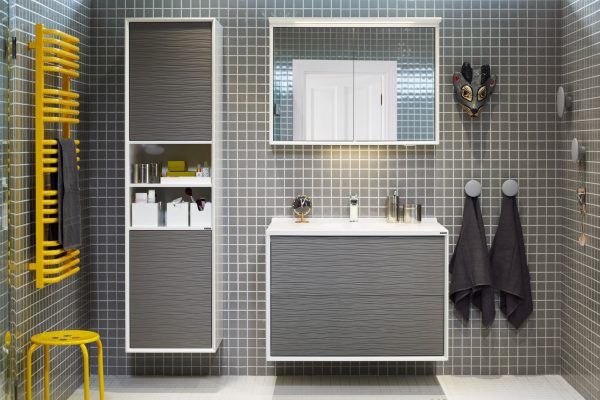

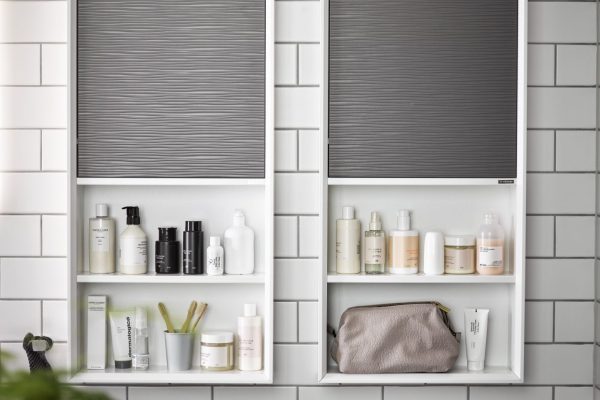

Fields of application

Interior fittings
Furniture manufacture
Shop and fair construction
Doors

Downloads

Data Sheet

Technical Drawing

Handling Instructions

Edge Processing

Textures

Price Orientation

+ - Sample Request

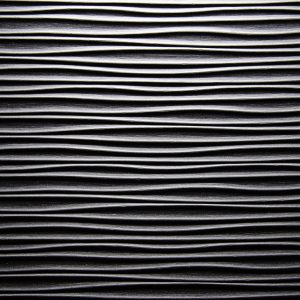

	Black - Fineline veneer		✓

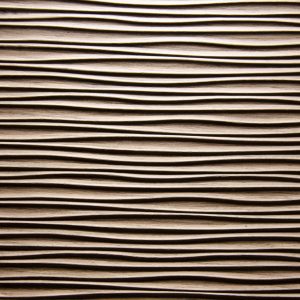

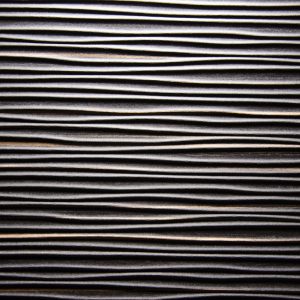

	Ebony Maro - Alpi veneer		✓

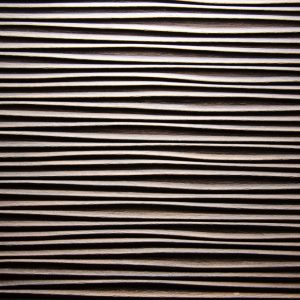

	Oak chocolate - Fineline veneer		✓
	Walnut - Fineline veneer		✓

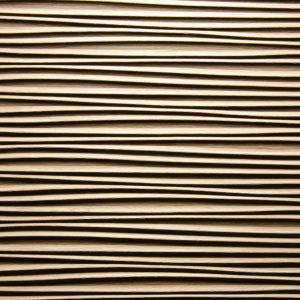

	Light Oak - Fineline veneer		✓

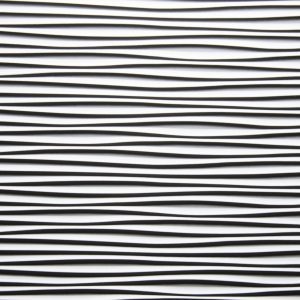

	Lacquerable foil		✓
